Secondary Battery

Secondary battery manufacturing facility (Mixing Tank, Hopper, Structure, Module Ass’y)

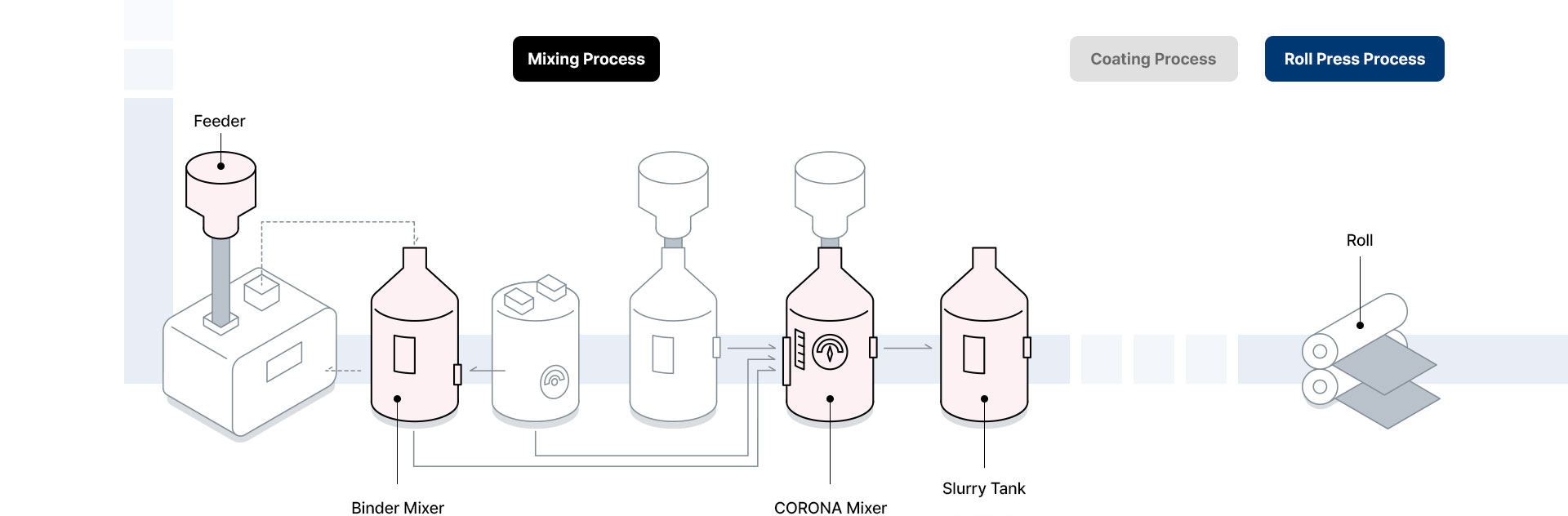

The mixing process plays a vital role in the electrode process, which produces the positive and negative electrodes.
Mixing is the first step in the electrode process
In this step, various raw materials for the anode and cathode are measured and mixed. Active materials and solvents, serving as the foundation of battery materials, are then combined to create a slurry.

MoPEC combines superior stainless steel fabrication skills with cutting-edge Auto Buffing and Auto Welding Machine.

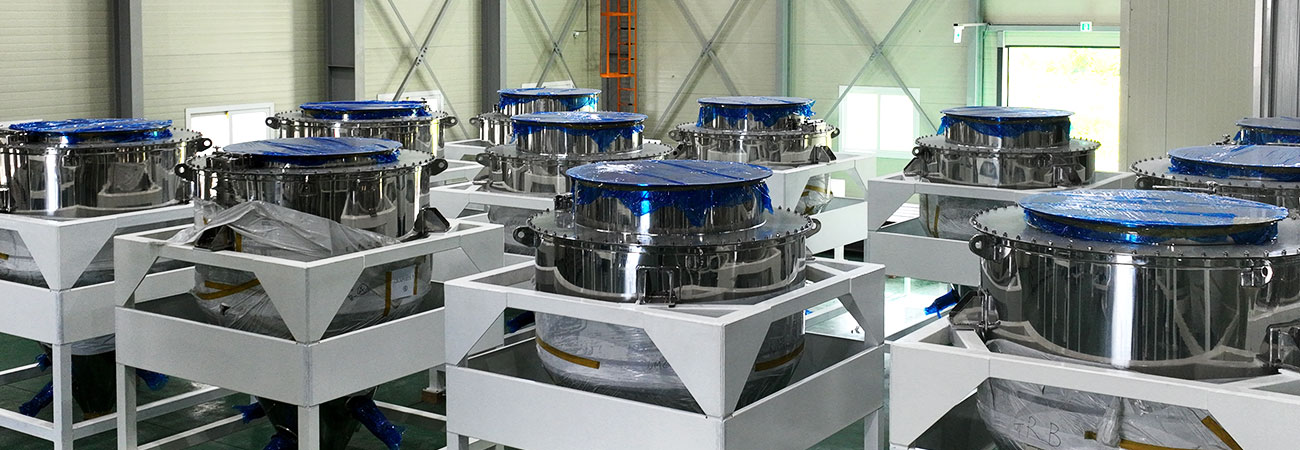

Secondary battery equipment components Mixing Tank, Hopper, Structure

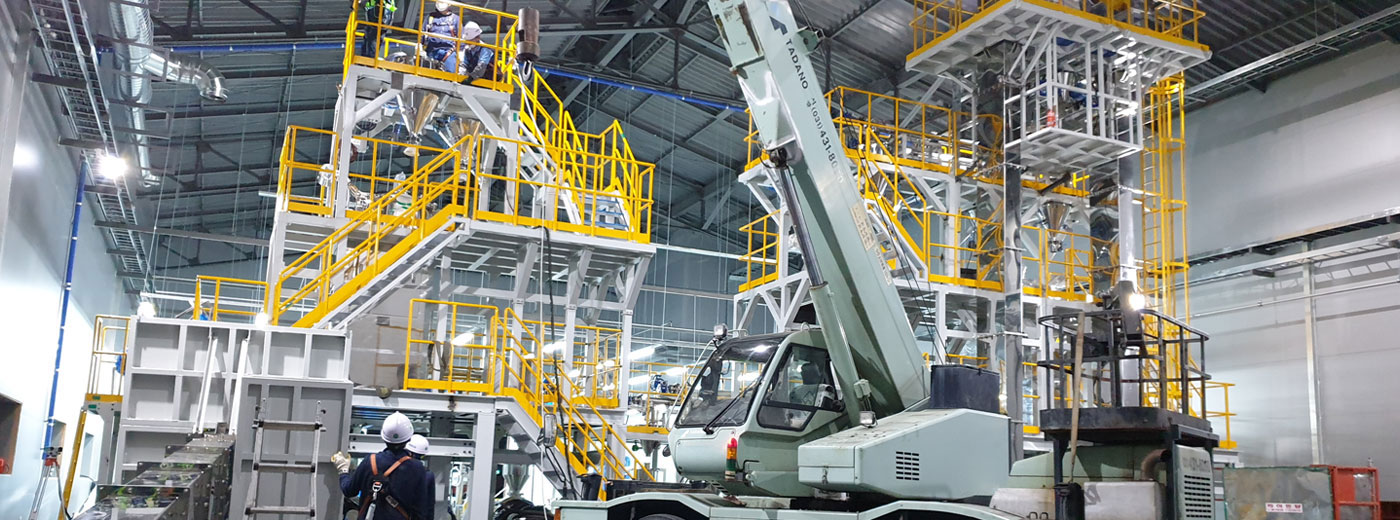

Mixing process facility components

The process produces active materials and applies them to aluminum cathode foils and copper anode foils.

Secondary battery manufacturing facility (Roll Press Main Roll)

Roll pressing is a critical step that defines the density, performance, and surface characteristics of battery electrodes.
Large rolls compress the electrode, making it thinner and flatter to improve density. This strengthens the bonding of the active material and ensures smooth lithium-ion transport, enhancing the cell’s performance and output.

Secondary battery equipment components Roll Press Main Roll

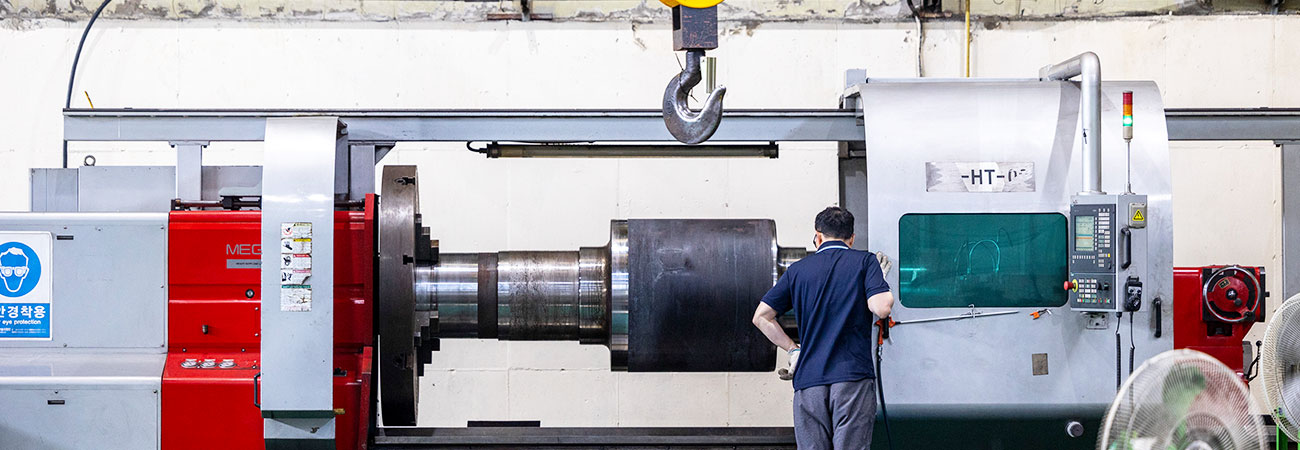

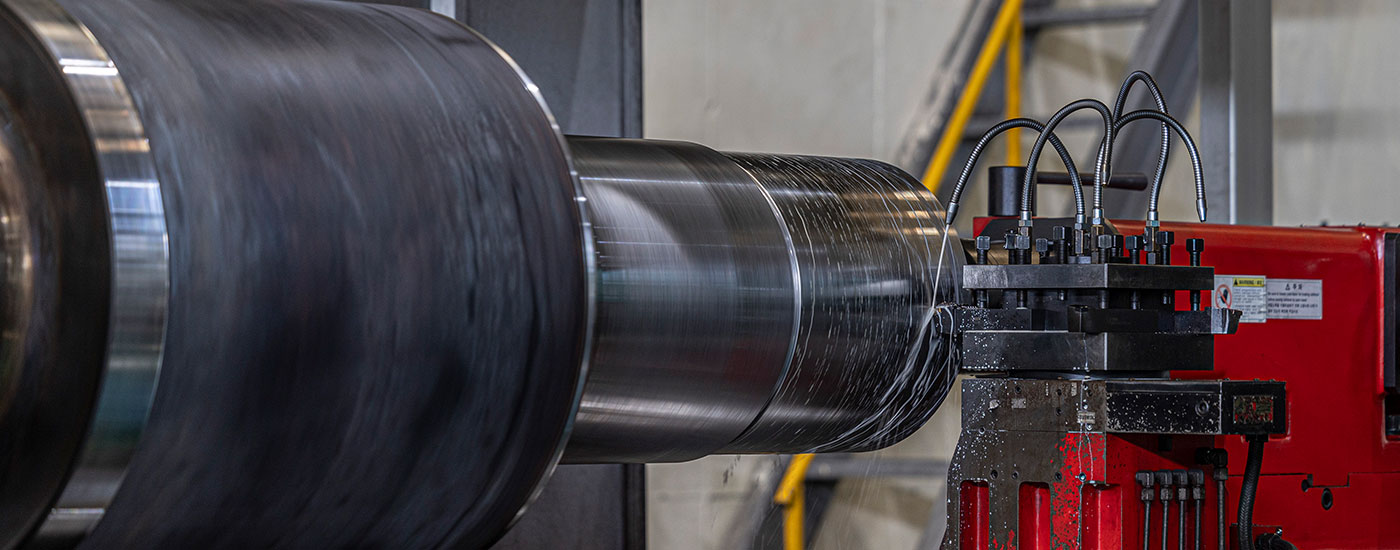

Roll Press Main Roll

In roll pressing, the electrode is passed between two rolls to create a consistent, even surface.
